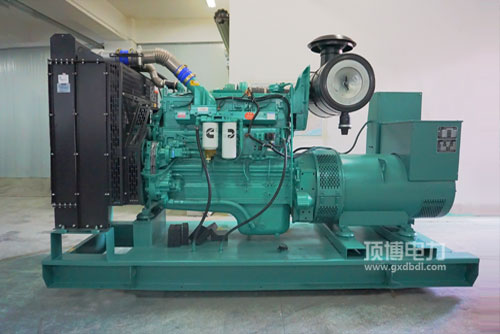

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用起驱动力汽柴油划算性好: 为先进的汽柴油操控来设计，独立拥有的STC、ESTC 级别划分操控来设计，唯一性来设计的汽缸顶端自燃室，高压电引射汽柴油，加以做雾化，自燃加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打火机瞬态特性优良: 好看的打火机整体布局方案，针对康明斯特殊的EFC系统化，管理精密程度高，没有响应时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电机组用启驱力升工作功率高: 整体性设计方案紧促.外观简约时尚安装适宜，操作平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷舱位 QSNT. QSK19. QSK38. QSK50条件国非路段再次环节及南美Tier2. Tier 3摆放标准条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件可要性好， 打着机电脑运行及维修大保养大保养方便，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率範圍 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品品质 Dry Weight   940kg

224-310KW康明斯火力发电用发起机的性能：容积小， 降低比低， 格珊大气采暖器，易通电，移动式车载导航电源适配器的最佳的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

起心理机型	选用电率(kW)Prime Power	预备公率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
